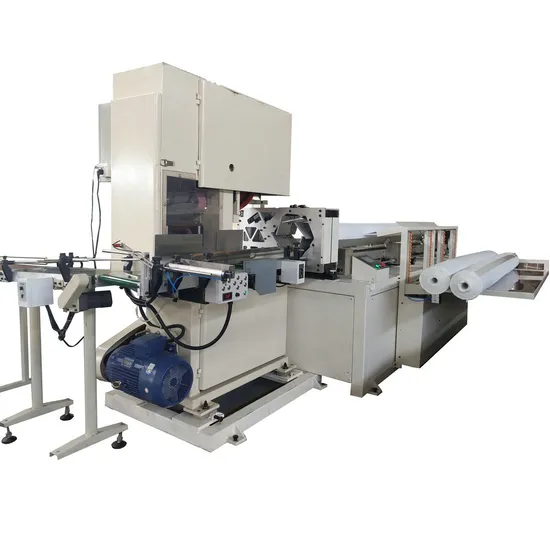

Fully Automatic Large Toilet Paper Cutting Machine for Household Paper Processing Plants

• Overview
• Product Description
• Feature And Functions
• Product Parameters
• Detailed Photos
• Production Line
• Packaging & Shipping
• After Sales Service
• Company Profile

Overview

Basic Info.

Model NO.	XY-AI-500
Classification	Single-blade Cutter
Driven Type	Electric
Type	Cutting Machine
Blade Material	Steel
Computerized	Computerized
Cutting Speed	15-30cuts/Min
Cutting Blade Size	5180*100*1.05mm
Log Length	2200mm or 2850mm
Tolerance	2mm
Cutting Length	300mm
Cutting Diameter	150-300mm(Adjustable)
Thickness of Paper Core	3mm
Power Supply	15kw 380V 50Hz 3phases
Machine Weight	2700kg
Overall Size of Machine(L*W*H)	5300*2350*2200mm
Transport Package	Wooden Pallet
Specification	Depend on the model
Trademark	Xinyun
Origin	China
HS Code	8441100
Production Capacity	200sets/Year

Product Description

XY-AI-500 Fully automatic large toilet paper cutting machine for household paper processing plants Product Description

The equipment is the latest research and development which is the extension of the company with the current market situation. Using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control, and other international advanced technology can automatically detect each key action, have a good fault information prompt system, and make the whole production line achieve the best working state.

Video Link:https://youtu.be/hV-H98Q7VZU

Feature And Functions 1. The main motor uses the inverter-independent drive. 2. For one set of machines, the cutting diameter of the paper roll is adjustable as 100~280mm. 3. The equipment adopts an automatic sharpening system, grinding wheel can be automatic feeding adjustment according to the blade loss. 4. The grinding system is equipped with an independent dust removal device to ensure the working environment. 5. The band saw adopts a hydraulic tension system to ensure the tension of the band saw. 6. It will be an automatic stop and alarm when the knife is broken. 7. A high-precision servo system is used to ensure the quality of finished products. 8. According to the raw materials and the length of finished products, the number of finished products can be calculated automatically. 9. The device stops working and prompts the interface when the input data is wrong. 10. Using a band saw for cutting and reducing the cost of use of users. 11. The thickness of the finished paper core should be less than 3mm(Suggestion).

Workshop

Why choose machines from Fujian Xinyun Machinery Development Co., Ltd?1. Good quality machine at a reasonable price. 2. Good service: Any question from a customer will be replied within 24 hours. For all the machines we sell, we will offer a one-year guarantee for free and all life-long maintenance. We deliver a USB dish of Operation Video with the machine, which will help customers to work the machine easily. After the machines arrive, the sellers shall send technicians to install the production line(if needed). The buyer shall pay for their round-trip air tickets from the China factory to the buyer's factory, the charge of visa, food, transportation, and accommodation in the buyer's city.

Fujian Xinyun Machinery Development Co., Ltd is good at Paper Converting Machinery manufacturing.Professional supplier of: 1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service) 2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service) 3) Facial Tissue Machine (2-14 output lanes) 4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type) 5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type) 6) Pocket Tissue Machine(mini and standard size) 7) All kinds of Tissue Paper Cutting and Packing Machine 8) Another Household Paper Equipments and Production Line.

Welcome to send us An Inquiry, we will reply as soon as possible, thank you.

Product Parameters

Cutting speed	15-30cuts/minute
Cutting blade size	5180*100*1.05
Log length	<=2200mm or <=2850mm
Tolerance	±2mm
Cutting length	<=300mm
Cutting diameter	150-300mm(Adjustable)
Thickness of paper core	<=3 mm
Power supply	15KW 380V 50HZ 3phases
Machine weight	2700KG
Overall size of machine	5300*2350*2200mm

Detailed Photos Production Line Automatic Maxi Roll Kitchen Towel Machine Production Line Video Link: https://youtu.be/IrZjQOB5Mho There are four machines in this production line. 1) XY-TQ-B Full Automatic Toilet Paper-Making Machine High speed:200 meters/minute Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours) 2) XY-AI-500 Automatic Maxi Roll Band Saw Cutting Machine Capacity: 15-30 rolls/min Cutting diameter:150-280mm 3) XY-TN-269 Automatic Maxi Roll Shrink Packing Machine Capacity: 10-20 bags/min XY-TQ-A-D Fully Automatic Toilet Paper Making Machine Production Line Video Link:https://youtu.be/BSJ2VIRPa3E There are three machines in this production line. 1) XY-TQ-B Full automatic glue lamination toilet paper making machine High speed:200 meters/minute 2) Log Roll Accumulator 3)XY-AI-280 Automatic toilet paper double channels log saw cutting machine Capacity: 160-200 rolls/min Cutting diameter:90-140mm 4)XY-AI-398D Full automatic toilet paper multi rolls packing machine Capacity: 18 bags/min Packaging & Shipping After Sales Service Company Profile
