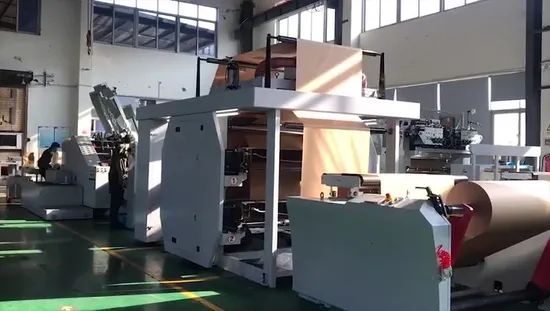

Fully Automatic High Speed Square Bottom Paper Bag Making Machine with Online Handle

• Overview
• Samples
• Product Description
• Detailed Photos
• Product Parameters
• Packaging & Shipping
• Company Profile

Overview

Basic Info.

Model NO.	BT-RZFD--450T
Voltage	380V
Seals Mode	Center Seals
Speed	Medium
Continuous-Rolled	No
Sealing & Cutting	Heat-Sealing Cold-Cutting
Layer	Single
Machine Type	Bag Forming Machine
Computerized	Computerized
Type	Paper Bag Making Machine
Material	Paper
Bag Type	Shopping Bag
Bag Width	100-330mm
Bag Height	80-180mm
Size of Bag Gusset	80-160mm
Material Basis Weight(Thickness)	60-140GSM
Paper Roll Maximum Width	1050mm
Roll Paper Diameter	1200mm
Paper Core	76mm
Handle Rope Height	100mm
Handle Distance	75mm
Machine Speed	30-200bags/Min
Production Speed for Bags Without Handle	30-180bags/Min
Production Speed for Bags with Handles	30-150bags/Min
Power Supply	380V 3phase 40 Kw
Transport Package	Wooden Case Packing
Specification	7800*2100*2300mm
Trademark	BETTY
Origin	China
HS Code	8449009000
Production Capacity	100set/Month

Product Description

1.Use France Schneider Touch Screen Human-Computer Interface, operate and control easily.2.Adopt Germany Original LENZE PC Control, integrated with optical fiber, ensure high speed running steadily.3. Germany Original LENZE Servo Motor and Germany Original SICK Photoelectric Eye Correction, tracking printing bag accurately.4.Raw material load adopt Hydraulic pressure up and down structure, unwinding adopt auto tension control. 5.Raw material unwinding EPC adopt Italy SELECTRA, Reduce adjustment time. 6:Switerzland Robatech hot melt gluing machine for handle unit7:Use mechanical adjustable forming plate for easy operation.

Fully Automatic High Speed Square Bottom Paper Bag Making Machine with online handleMachine

Samples

Product Description Detailed Photos

Product Parameters

Model	RZFD--330T	RZFD--450T	RZFD-450BT
1:Paper bag part
Cutting length C	270-530mm	270-530mm	380-760mm
	270-430mm(Handle)	270-430mm(Handle)	380-660mm(Handle)
Bag width W	120-330mm	220-450mm	220-450mm
	200-330mm (Handle)	240-450mm (Handle)	240-450mm (Handle)
Bottom width H	70-180mm	90-180mm	90-220mm
	80-180mm(Handle)	100-180mm(Handle)	100-220mm(Handle)
Paper Thickness	60-140g	80-140g	80-140g
	80-140g(Handle)	80-140g(Handle)	80-140g (Handle)
Paper roll Maximum width	1050mm	1290mm	1370mm
Roll paper diameter	ф1200mm	ф1200mm	ф1200mm
Paper core	ф76mm	ф76mm	ф76mm
2:Rope handle part
Patch length a	152mm	190mm	190mm
patch width b	45-50mm	45-50mm	45-50mm
Handle rope height d	100mm	100mm	100mm
Handle distance c	75mm	95mm	95mm
Rope diameter	ф3-5mm	ф3-5mm	ф3-5mm
Patch paper roll width	90-100mm	90-100mm	90-100mm
patch paper roll diameter	ф1000mm	ф1000mm	ф1000mm
patch paper thickness	100-130g	100-130g	100-130g
3:Specification
Machine Speed	30-200bags/min	30-180bags/min	30-150bags/min
production speed for bags without handles	30-180bags/min	30-140bags/min	30-130bags/min
production speed for bags with handles	30-150bags/min	30-130bags/min	30-120bags/min
Cutting knife	Teeth cutting
Power Supply	380V 3Phase 40 KW	380V 3Phase 40KW	380V 3Phase 43KW
Machine weight	13.5T	14.5T	16T
Machine size	15000x6000x2700mm
