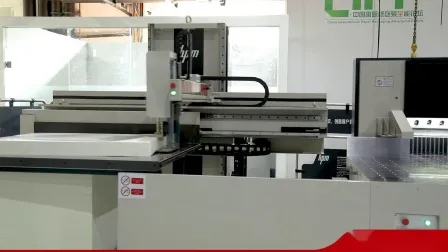

Full Automatic Program Control Hydraulic Copy Paper Cutting Machine

Basic Info.

Model NO.	SQZK92/115/130/137/168/188
Classification	Single-blade Cutter
Driven Type	Hydraulic
Type	Industrial Cutter
Blade Material	HSS
Computerized	Computerized
Cutting Height	16.5cm
Touch Screen	16 Inch
Automatic Grade	Automatic
Cutting Speed	45/Min
Transport Package	Wooden Case
Specification	92/115/130/137/168/188cm
Trademark	HPM
Origin	China
HS Code	84411000
Production Capacity	600units/Year

Packaging & Delivery

Package Size285.00cm * 175.00cm * 202.00cm Package Gross Weight4050.000kg

Product Description

SQZK S16 Hydraulic Copy Paper Cutting Machine

Computer System
1. The up-to-date 16" Widescreen LCD, full touch screen; Inovance PLC control.2. Eight languages to choose.3. Metric system and British system two units, show the dimensions of the front knife and the back knife. 4. Stepless speed adjustment function with latest technology,to make the cutting speed from 30 to 48 times within 1 minute,no need to change knife angle for different cutting material.5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 18m/min.6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.7. With USB, transmit data, to convenient operator make programming and arrangement via PC.8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic prompt switch failure.make the machine more convenient maintenance.9. The backgauge is driven by a Inovance servo-motor with four speed levels.10. Use Italy oil pump and hydraulic system.11. With automatic pushing paper function, the distance can be adjusted.12. Adjustable time delay for knife activation, accurate and convenient.


Machine Performance
1.Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.2.Clamp press paper stack through hydraulic system, the spring re-position.3.Worm gear drive mechanism, hydraulic clutch, mechanical brake.4.Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.5.One-piece, slotless and chrome-plated cast iron work table is sturdy and easy to maintain.6.Import ball screw with double linear guides to drive backgauge.7.High safety infrared protection device according to CE standard.8.Main electronic units are from French TE and Japanese ORMON famous international brands.

Configuration Listing


Technical Parameter

No.	Name	Brand, specification & model	Origin of brand
1	Background LCD	16''Color touch Interface	China
2	PLC	Inovance	China
3	Backgaugeposition motor	Inovance servo motor	china
4	Pick-up	Autonics	Korea
5	Limit switch	TE	France
6	Guarding motor	TE	France
7	Air switch	TE	France
8	AC Contactor	TE	France
9	Miniature relay	TE	France
10	Switching powersupply	TE	France
11	Power switch	CANSEN	China
12	Press-button	TE	France
13	Ball screw	High accurate	China
14	Linear guider	High accurate double linearguides	Taiwan
15	Hydraulic system	Combination Valve	Germany
16	Oil Pump	HP	Italy
17	Bearing	NSK	Japan
18	Work Table	Slotless and plated chromiumwork table	China
19	Photocell	Sheng da	China
20	knife	HSS	China
