Aopack Fully Automatic Cardboard Box Maker Double

• Overview
• Product Description
• Product Parameters

Overview

Basic Info.

Model NO.	BM2800-Max
Application	Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food, Cardboard Box Maker Bm2800-Max
Driven Type	Electric
After-Sales Service Provided	Overseas Third-Party Support Available
Type	Automatic Carton Making Machine
Automatic Grade	Automatic
Product Name	Cardboard Box Maker Bm2800-Max
Male & Female Double-Sided Creasing	Carton Flaps Inward and Outward Folding Without Bu
Oversized Large Box	Oversized Large Box Rsc Box Maximum Height Is 250
Quick Changeover Time	Independent Motor Control, Appr. 1-6s Quick Change
Vibration Knife Cutting (Optional)	Import CAD File, Vibrating Knife Cutting Irregular
Multifunctional Machine	Inconsistent Creasing, Customized Box Style, Comme
Easy for Short Run Boxes Production	Slotting, Slitting, Creasing, Trimming, Vibrating
Transport Package	Cardboard Box Maker Bm2800-Max in Plywood Box
Specification	Cardboard Box Maker BM2800-Max
Trademark	Aopack
Origin	China
HS Code	8441309000
Production Capacity	200 Sets/Year

Packaging & Delivery

Package Size3900.00cm * 1800.00cm * 1960.00cm Package Gross Weight3500.000kg

Product Description

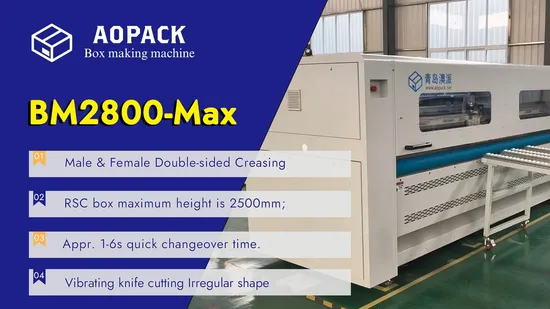

Aopack Fully Automatic Cardboard Box Maker Double-sided Creasing Corrugated Carton Manufacturing Machine

The BM2800-Max is the newest generation of short run on demand cardboard box maker.

Simply place your corrugated cardboard on the automatic board feeding area, choose a preprogrammed box style and enter the box dimensions on the touchscreen panel and click start.

Board Feeding, Slotting, Scoring, Creasing, Slitting, Trimming, and Vibrating Knife Cutting can all be done in one quick pass on this compact machine.

Cardboard Box Maker BM2800-Max Highlight

Male & Female Double-sided Creasing
Carton flaps Inward and outward folding without burst.

Oversized Large Box
RSC box maximum height is 2500mm; Max. cardboard with 2800mm and unlimited length.

Quick Changeover Time
Independent motor control, appr. 1-6s quick changeover time.

Vibration Knife Cutting (Optional)
Import CAD file, vibrating knife cutting irregular shape, No mould needed.

Multifunctional Machine
Inconsistent creasing, customized box style, commercial pads slitting

Easy for Short Run Boxes Production
Slotting, Slitting, Creasing, Trimming, Vibrating Knife Cutting (Optional), Gluing (Optional)


Male & Female Double-sided Creasing Vibrating Knife Cutting Irregular Shapes
Fefco 0300 TeleScopic Boxes Fefco 0402 Folder Type Boxes
Fefco 0933 Interior Fitments Self Locking Box

Cardboard Box Maker BM2800-Max Technical Data

Product Description Cardboard Box Maker BM2800-Max Finished Boxes

Corrugated Box Making One Stop Solution

BM2800-Max Basic Box Styles
BM2800-Max Machine Layout Product Parameters

Cardboard Min. Size	260 * 680mm	Machine Production Capacity	Appr. 8~15pcs/min
Cardboard Max. Size	2800mm * Unlimited Length	Order Changeover Time	Appr.1~6s
Cardboard Thickness	2-12mm	Vertical Slitting Knife Qty	6
Cardboard Weight	≤1200g/ squre meter	Creasing Wheel Qty	6
Min. Slitting Size	60mm * 50mm	Min. Slitting Distance	25mm
Min. Box Size	50mm(W)*50mm(L)*110mm(H)	Min. Creasing Distance	25mm
Min. Creasing Distance (Thinnest Box)	25mm	Inconsistent Creasing	Available
Min. Box Height (Min. Slotting Distance)	110mm	Concave and convex Creasing	Available
Max. Box Height (Max. Slotting Distance)	2500mm	Vibrating Knife	Optional
Max. Box Length	Unlimited	Weight	Appr. 3200kg
Slotting Knife Size	2 * 500mm	Automatic Board Feeding	Leading edge feeding
Slotting Knife Thickness	7mm	Air Consumption	75L/min
Slotting Length	20~1000mm	Power	Appr. 8kW
Machine Size	3760(W)*1700(L)*2030(H)mm
